Lathbury, All Saints

Tower:
Bell:

Diameter: 29ѕ"	Cast by: Edward Hall in 1731
2	Estimated weight: 5 - 0 - 4 (Based on model)
Nominal: Flat of G by 12 cents (based on analysis by Wavanal)	Documented note: C (Dove)

Inscriptions

Process Inscription





EDWARD HALL MADE ME 1731

Trapezoids of bell shapes:

Photos:

History and Archive

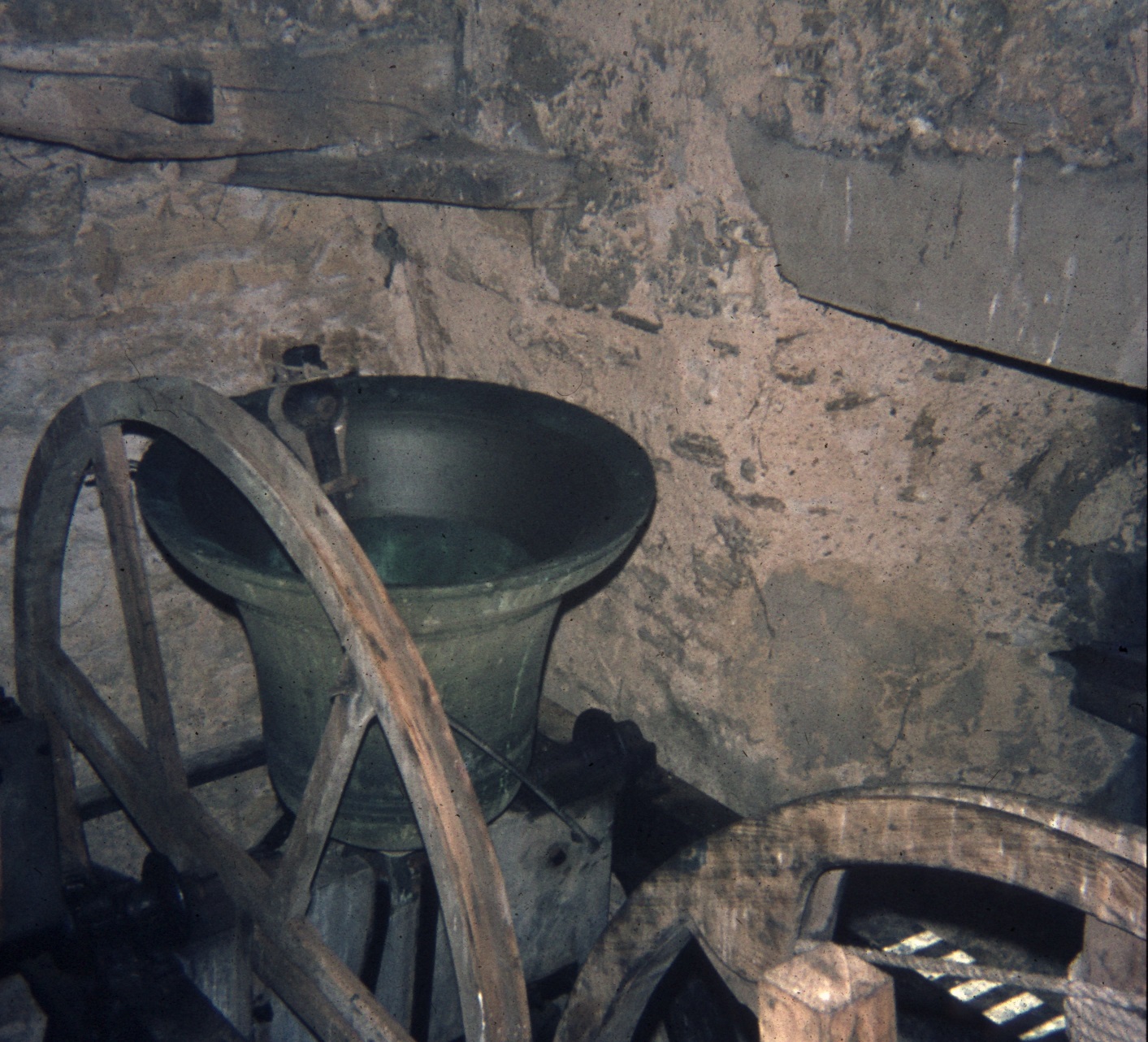

The 2nd with clapper tied

1974

Actual tuning of partials	Variation from Simpson tuning
Analysis of partial tones based on analysis by Wavanal:
Hum: 222Hz, which is Sharp of A by 2 cents																						Should be: 193 Hz
Prime: 390Hz, which is Flat of G by 2 cents																						Should be: 386 Hz
Tierce: 478Hz, which is Sharp of A#/Bb by 12 cents																						Should be: 455 Hz
Quint: 646Hz, which is Flat of E by 13 cents																						Should be: 579 Hz
Nominal: 772Hz, which is Flat of G by 12 cents																						Should be: 772 Hz
Upper Third: 1055Hz, which is Sharp of C by 9 cents																						Should be: 972 Hz
Upper Quint: 1146Hz, which is Flat of D by 29 cents																						Should be: 1150 Hz
Upper Octave: 1574Hz, which is Sharp of G by 6 cents																						Should be: 1536 Hz
