BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounder
3  C#/Db5 - 0 - 125 - 0 - 2330Taylor Oxford in 1838

Inscriptions:

TAYLOR CAMPANARIUS OXFORD 1837:8

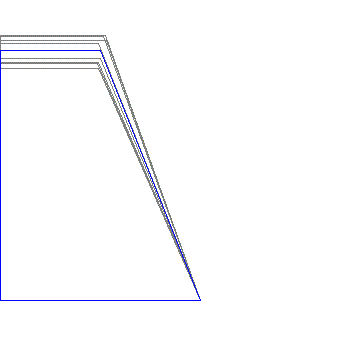

Trapezoids
How does the shape of this bell compare to others in the ring?
Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.
Photos
Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Upper Octave2286-14
Upper Quint1690-39
Upper Third1340-124
Nominal11520
Quint855-16
Tierce69525
Prime542-105
Hum312139

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:1141Hz
Sharp of C#6/Db6 by 32Hz
MP3
Stony_3.mp3
