BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounder
4  C4 - 3 - 105 - 1 - 130¾Taylor Oxford in 1838

Inscriptions:

TAYLOR FECIT OXON 1837:8

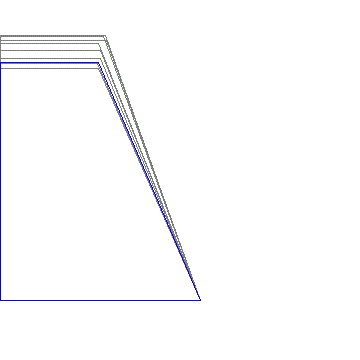

Trapezoids
How does the shape of this bell compare to others in the ring?
Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.
Photos
Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Upper Octave20583
Upper Quint1716187
Upper Third131238
Nominal10270
Quint78433
Tierce62335
Prime510-12
Hum27087

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:1022Hz
Flat of C6 by 24Hz.
MP3
Stony_4.mp3
