Corrections to analysis of bell harmonics at Wavendon and Great Linford - June 2022


BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounderMP3
2C#Weight BoardC#/Db3 - 3 - 74 - 0 - 2427½Gillett & Johnston in 1912

Inscriptions:

CAST BY GILLETT & JOHNSTON CROYDON

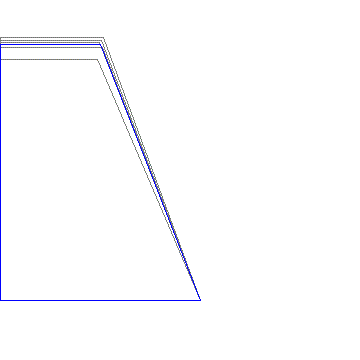

Trapezoids

How does the shape of this bell compare to others in the ring?


Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.

Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Hum278-9
Prime558-3
Tierce67629
Quint830-16
Nominal11180
Upper Third1396-2
Upper Quint1654-24
Upper Octave227228

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:1118Hz
Sharp of C#/Db by 9 cents
