Latest on this site:

Corrections to analysis of bell harmonics at Wavendon and Great Linford - June 2022


BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounderMP3
8  C6 - 0 - 105 - 3 - 1431Taylor in 1992

Inscriptions:

Cast as a gift of Patricia Newton
Master of the Oxford Diocesan Guild

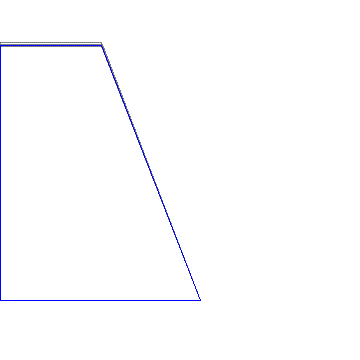

Trapezoids

How does the shape of this bell compare to others in the ring?


Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.

Photos

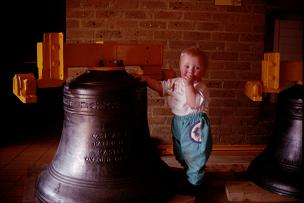

 This young person rang her first peal of Major on these bells in June 2005
Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Hum2623
Prime5257
Tierce620-5
Quint79014
Nominal10460
Upper Third1429154
Upper Quint15745
Upper Octave217063

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:1046Hz
Exactly C
