Corrections to analysis of bell harmonics at Wavendon and Great Linford - June 2022


BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounderMP3
2DWeight BoardD4 - 3 - 264 - 3 - 1629Gillett & Johnston in 1911

Inscriptions:

RECAST BY GILLETT & JOHNSTON CROYDON 1911.
THOMAS LESTER MADE ME 1749.

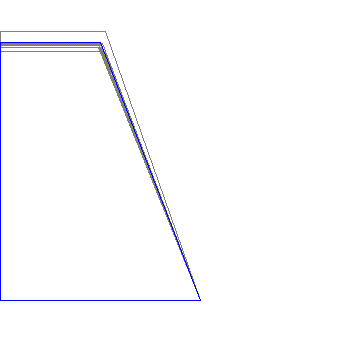

Trapezoids

How does the shape of this bell compare to others in the ring?


Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.

Photos

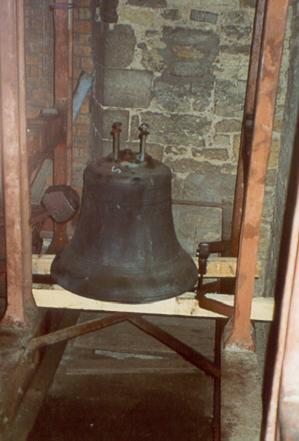

 The 2nd without headstock
Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Hum2906
Prime5780
Tierce69519
Quint856-20
Nominal11560
Upper Third145310
Upper Quint1725-9
Upper Octave3091503

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:1156Hz
Flat of D by 19 cents
