Corrections to analysis of bell harmonics at Wavendon and Great Linford - June 2022


BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounderMP3
1F F - - 3 - 3 - 526½Henry Bagley in 1681

Inscriptions:

ALEXANDER DEANTON 1681

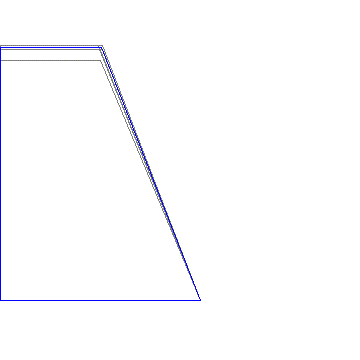

Trapezoids

How does the shape of this bell compare to others in the ring?


Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.

Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Hum36767
Prime686-50
Tierce85429
Quint111591
Nominal14120
Upper Third183063
Upper Quint2085-27
Upper Octave284613

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:1412Hz
Sharp of F by 15 cents
