Corrections to analysis of bell harmonics at Wavendon and Great Linford - June 2022


BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounderMP3
5A# A#/Bb - - 7 - 2 - 434¼Mears & Stainbank in 1893

Inscriptions:

W HALL MADE ME 1756
ROBERT HOLT, VICAR
NATHANIEL COATES, CHURCHWARDENS
FREDERICK THOMAS BARGE,


RECAST BY MEARS & STAINBANK, WHITECHAPEL FOUNDRY, LONDON 1893

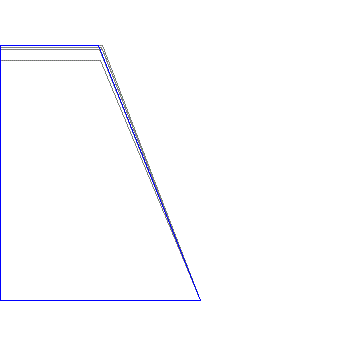

Trapezoids

How does the shape of this bell compare to others in the ring?


Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.

Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Hum272294
Prime443-61
Tierce56869
Quint764182
Nominal9180
Upper Third117947
Upper Quint1346-39
Upper Octave18382

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:918Hz
Flat of A#/Bb by 14 cents
