Corrections to analysis of bell harmonics at Wavendon and Great Linford - June 2022


BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounderMP3
6G#DoveG#/Ab9 - 0 - 129 - 2 - 737¾Mears & Stainbank in 1893

Inscriptions:

PRO REGE ET ECCLESIA ALEXANDER DENTON ROBERT CORBETT
CHURCHWARDEN HENRY BAGLEY MADE MEE 1721
ROBERT HOLT, VICAR
NATHANIEL COATES, CHURCHWARDENS
FREDERICK THOMAS BARGE


RECAST BY MEARS & STAINBANK, WHITECHAPEL FOUNDRY LONDON 1893

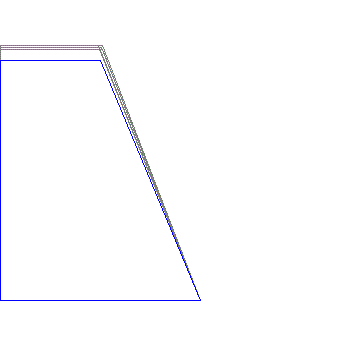

Trapezoids

How does the shape of this bell compare to others in the ring?


Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.

Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Hum233209
Prime400-55
Tierce50445
Quint65598
Nominal8260
Upper Third105843
Upper Quint1220-27
Upper Octave167120

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:826Hz
Flat of G#/Ab by 5 cents
