BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounderMP3
4  D#/Eb5 - 0 - 85 - 0 - 428 7/8Taylor Oxford in 1822

Inscriptions:

+ W: & J: TAYLOR CLOCK & CHIME MAKERS FECIT 1822

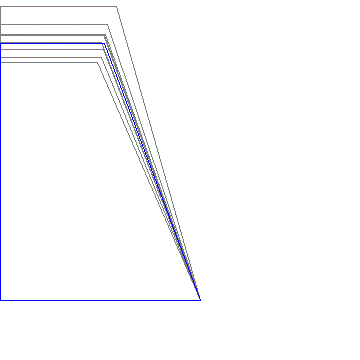

Trapezoids

How does the shape of this bell compare to others in the ring?


Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.

Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Hum303-3
Prime603-11
Tierce72815
Quint93650
Nominal12140
Upper Third156048
Upper Quint1798-22
Upper Octave245922

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:1214Hz
Flat of D#/Eb by 31 cents
