Corrections to analysis of bell harmonics at Wavendon and Great Linford - June 2022


BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounderMP3
9EWeight BoardD#/Eb16 - 0 - 1518 - 3 - 2247¼Thomas Russell in 1733

Inscriptions:

IOHN \ MARKES AND |THOMAS | OSBORNE CHVRCHWARDENS O OOO THOMAS RUSSELL | OF WOOTON O MADE O MEE 1733 O O

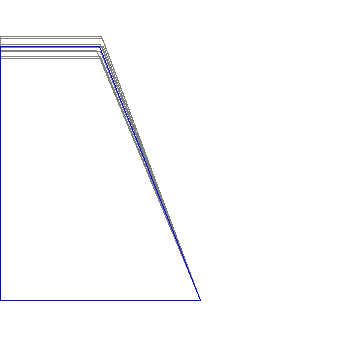

Trapezoids

How does the shape of this bell compare to others in the ring?


Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.

Photos

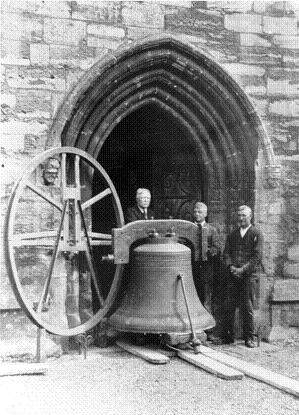

 The seventh delivered from Whitechapel
12
Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Hum16216
Prime320-5
Tierce39037
Quint474-25
Nominal6420
Upper Third82854
Upper Quint950-24
Upper Octave130224

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:642Hz
Flat of E by 17 cents
