North Bucks Branch Archive Project

Main Branch site:

Branch site

The Branch web site contains up to date information about ringing in North Bucks. Much of the information formerly in this site can now be found there.


Latest on this site:

Web development - Oct 2020

Contribution to the Zoom discussions about the History of Little Horwood's bells has prompted the development of a set of map pages.

These show the activity of the bell founders both in our area and outside.


BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounder
1CWeight board? 5 - 3 - 185 - 3 - 2331¼Gillett & Johnston in 1908

Inscriptions:

CAST BY GILLETT & JOHNSTON CROYDON
AD MAJOREM DEI GLORIAM
THIS BELL WAS GIVEN IN MEMORY OF
JOHN, JAMES, AND HARRIET MORRIS
BY THEIR FOUR SURVIVING SISTERS
1908

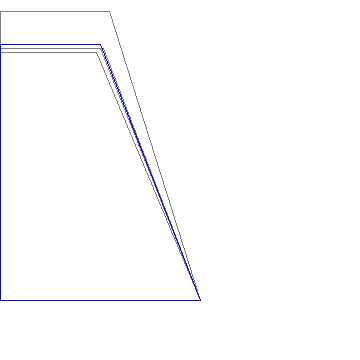

Trapezoids
How does the shape of this bell compare to others in the ring?
Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.
Photos
Tonal Analysis
Is this bell in tune with itself?

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
MP3
